Nov 13, 2020 8:00 AM
Efficiency boost: thyssenkrupp launches innovative SIP blast furnace technology
Blast furnace in Duisburg uses new oxygen technology SIP
Process increases furnace efficiency and reduces costs
Technology to be marketed worldwide
thyssenkrupp has equipped the "Schwelgern 1" blast furnace in Duisburg with a new technology: The so-called SIP process ("sequence pulse process with induced shock waves") helps increase efficiency in the furnace – both within the company and worldwide by marketing the technology. This is an innovative oxygen injection process specially tailored to the blast furnace process. Lead partners in the development of the technology, which is unique worldwide, were thyssenkrupp AT.PRO tec GmbH, a company of thyssenkrupp Materials Services, and thyssenkrupp Steel Europe.
New process increases the efficiency of the furnace

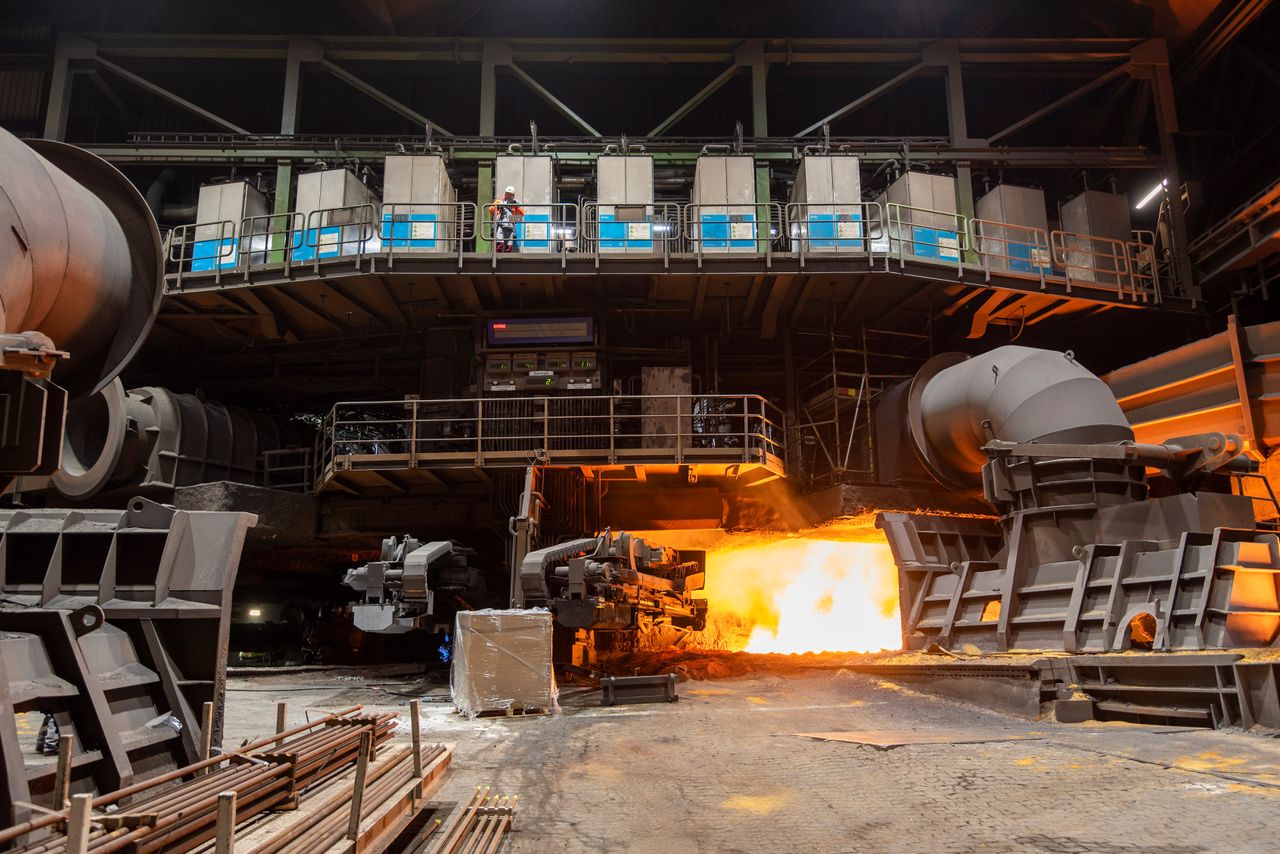

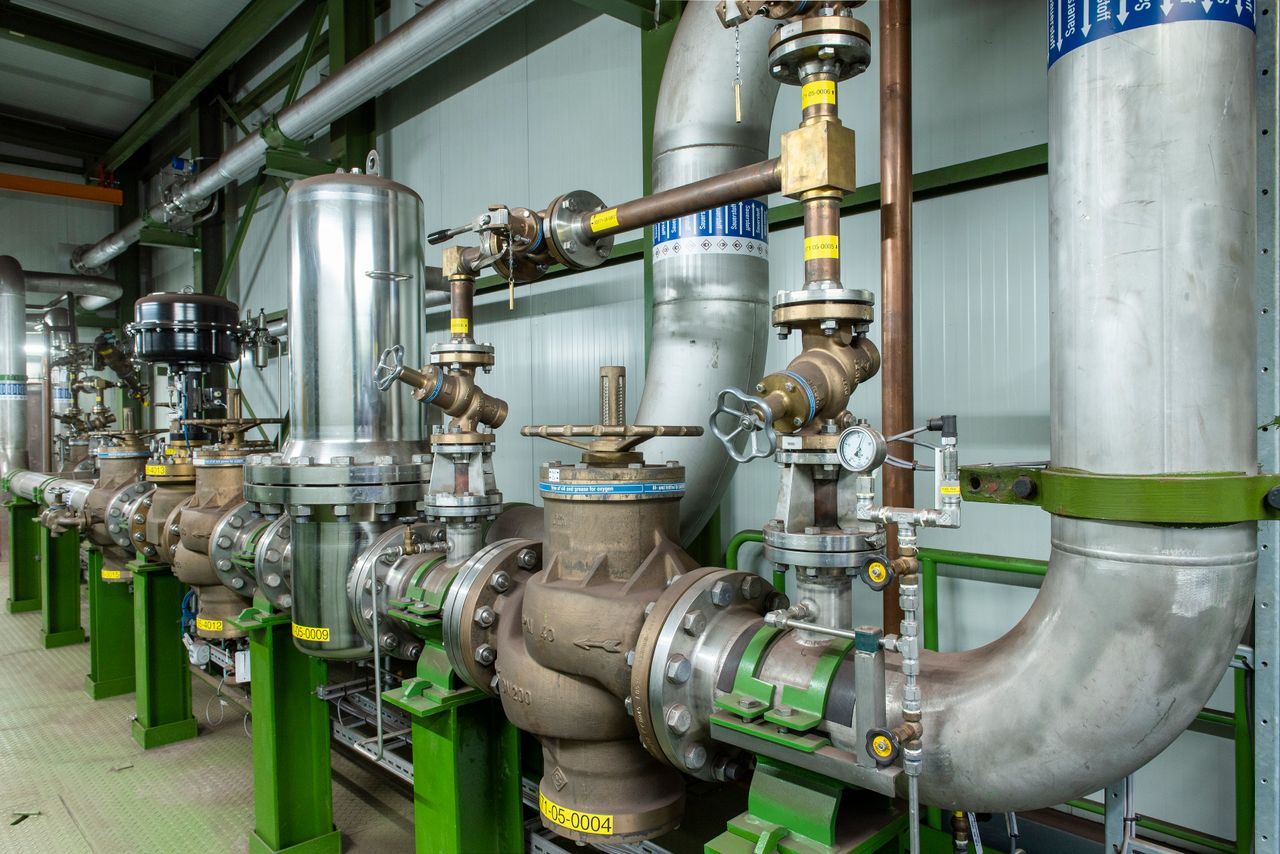

The SIP process, which is now being used at the Duisburg blast furnace "Schwelgern 1", is focused on a "deep action" of the oxygen. For technical implementation, an additional lance through which the oxygen is injected is inserted into each of the 40 tuyeres of blast furnace 1. Each of the 40 lances is also supplied by its own injection unit, the so-called SIP box. Additional oxygen is subsequently brought into the furnace by means of pulses, which react deeper in the furnace. This improves the gas and liquid flows of the blast furnace and increases efficiency.
"The SIP process is an in-house development and our furnace is the first in the world to go into operation. The carbon-based metallurgy of the blast furnace route will perspectively give way to hydrogen-based technologies. Innovations such as the SIP process allow the necessary efficiency improvements and CO2 savings in the existing infrastructure until the technology change is fully implemented," explains Dr. Rainer Klock, Manager Furnace Metallurgy of the Schwelgern blast furnace operation of thyssenkrupp Steel Europe.
thyssenkrupp expects to reduce costs and also CO2 emissions. "By optimizing the consumption of the reducing agents coke and coal dust, we will probably save millions of euros in costs at Schwelgern 1 alone – and this is just the beginning," says Jörg Glebe, Managing Director of thyssenkrupp AT.PRO tec GmbH. "In the long term we want to bring the technology to market worldwide and are already in talks with major plant engineering companies.”
